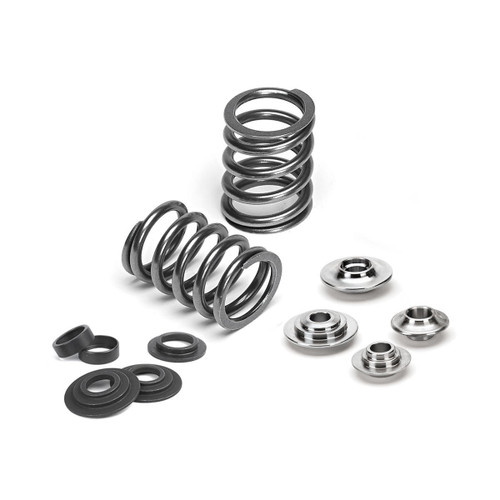

Performance Single Valve Spring Kit with Titanium Retainers
Applications: VW DAZA; VW TTRS-RS3
| Retainer Qty | 20 |
|---|
| Kit Spring | spr-a2416n |
|---|
| Kit Spring Qty | 20 |
|---|
| Safe Rpm Limit | 8000 |
|---|
| Retainer | ret-a2416-n2 |
|---|
| Rate | 10.50lbs/mm |
|---|
| Outer Spring Od | 24.00mm |
|---|
| Outer Spring Id | 16.50mm |
|---|
| Seat Pressure | 73 lbs@37.40mm ; 85 lbs@36mm |
|---|
| Open Pressure | 178lbs @ 10mm ; 190lbs @10mm |
|---|
| Max Lift | 12.50mm |
|---|
| Coil Bind | 24.90mm |
|---|
- Manufacturer: Supertech Performance
- Manufacturer part number: SPRK-A2416-5
Please confirm the selected specification and engine application before ordering.
