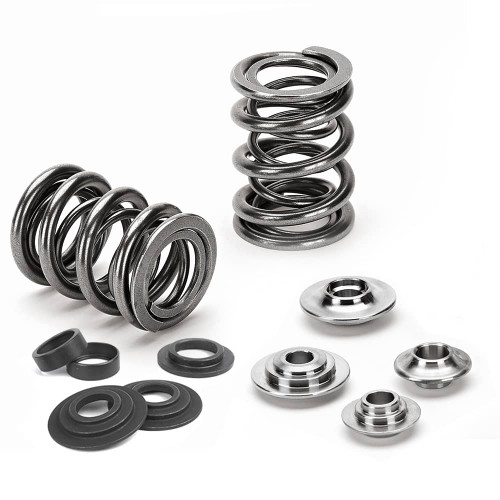

Performance Dual Valve Spring Kit with Titanium Retainers
Applications: BMW S50B32 Euro Version
| Retainer Qty | 24 |
|---|
| Seat Locator | seat-bm80 |
|---|
| Seat Locator Qty | 24 |
|---|
| Kit Spring | spr-h1000d |
|---|
| Kit Spring Qty | 24 |
|---|
| Safe Rpm Limit | 8000 |
|---|
| Retainer | ret-k20a2-t2 |
|---|
| Rate | 11.50lbs/mm |
|---|
| Coil Bind | 20.70mm |
|---|
| Outer Spring Od | 29.65mm |
|---|
| Outer Spring Id | 21.85mm |
|---|
| Inner Spring Od | 20.50mm |
|---|
| Inner Spring Id | 15.50mm |
|---|
| Seat Pressure | 73lbs @ 36.30mm |
|---|
| Open Pressure | 189lbs @ 10.00mm |
|---|
| Max Lift | 15.50mm |
|---|
- Manufacturer: Supertech Performance
- Manufacturer part number: SPRK-H1000D-BM-B32E
Please confirm the selected specification and engine application before ordering.
