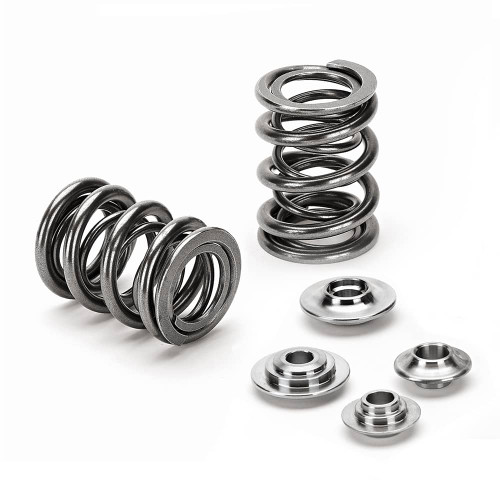

Performance Dual Valve Spring Kit with Titanium Retainers
Applications: Toyota 1FZ-FE I6
| Retainer Qty | 24 |
|---|
| Seat Locator | seat-h/n240 |
|---|
| Seat Locator Qty | 24 |
|---|
| Kit Spring | spr-h1005d |
|---|
| Kit Spring Qty | 24 |
|---|
| Safe Rpm Limit | 8000 |
|---|
| Retainer | ret-h70/t1 |
|---|
| Rate | 11.50lbs/mm |
|---|
| Coil Bind | 21.50mm |
|---|
| Outer Spring Od | 29.65mm |
|---|
| Outer Spring Id | 21.85mm |
|---|
| Inner Spring Od | 20.50mm |
|---|
| Inner Spring Id | 15.50mm |
|---|
| Seat Pressure | 100lbs @ 36.20mm |
|---|
| Open Pressure | 226lbs @ 11.00mm |
|---|
| Max Lift | 14.70mm |
|---|
- Manufacturer: Supertech Performance
- Manufacturer part number: SPRK-H1005D-1FZ
Please confirm the selected specification and engine application before ordering.
