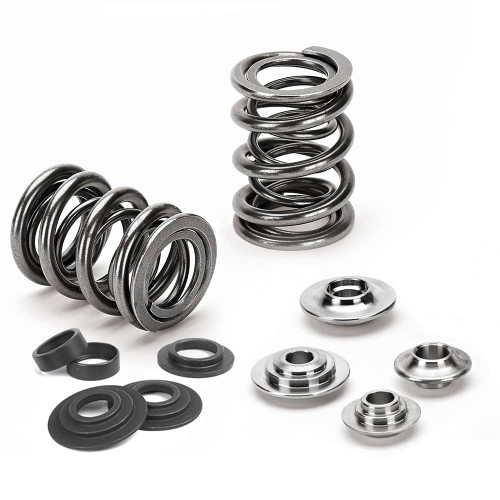

Performance Dual Valve Spring Kit with Titanium Retainers
Applications: Nissan SR20 VE P11 DOHC
| Retainer Qty | 16 |
|---|
| Seat Locator | use oem seat |
|---|
| Seat Locator Qty | 16 |
|---|
| Kit Spring | spr-h1021d |
|---|
| Kit Spring Qty | 16 |
|---|
| Safe Rpm Limit | 8000 |
|---|
| Retainer | ret-nsr20/t1 |
|---|
| Rate | 13.20lbs/mm |
|---|
| Coil Bind | 22.70mm ; 19.50mm |
|---|
| Outer Spring Od | 30mm |
|---|
| Outer Spring Id | 21.80mm |
|---|
| Inner Spring Od | 21.30mm |
|---|
| Inner Spring Id | 15.50mm |
|---|
| Seat Pressure | 138lbs @ 37.50mm |
|---|
| Open Pressure | 270lbs @ 10.00mm |
|---|
| Max Lift | 13.50mm |
|---|
- Manufacturer: Supertech Performance
- Manufacturer part number: SPRK-H1021D-VE
Please confirm the selected specification and engine application before ordering.
