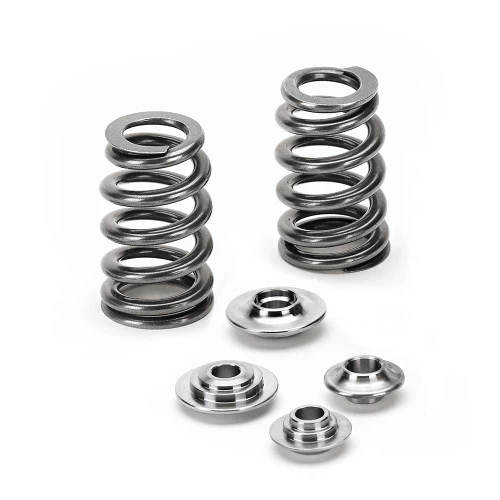

Performance Single Valve Spring Kit with Titanium Retainers
Applications: Mitsubishi 6G72 DOHC
| Seat Locator Qty | 24 |
|---|
| Kit Spring | spr-m1005s |
|---|
| Kit Spring Qty | 24 |
|---|
| Safe Rpm Limit | 8000 |
|---|
| Inner Spring Od | single |
|---|
| Inner Spring Id | single |
|---|
| Seat Locator | use oem seat |
|---|
| Retainer Qty | 24 |
|---|
| Retainer | ret-m65/t1 |
|---|
| Outer Spring Od | 28.10mm |
|---|
| Outer Spring Id | 20mm |
|---|
| Seat Pressure | 92lbs @ 37.15mm |
|---|
| Open Pressure | 207lbs @ 11.50mm |
|---|
| Max Lift | 12.20mm |
|---|
| Coil Bind | 23.50mm |
|---|
| Rate | 10lbs/mm |
|---|
- Manufacturer: Supertech Performance
- Manufacturer part number: SPRK-M1005S-6G72
Please confirm the selected specification and engine application before ordering.
