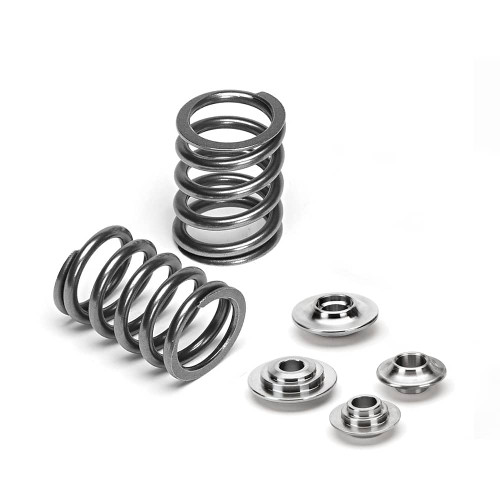

Performance Dual Valve Spring Kit with Titanium Retainers
Applications: Acura K20A2 / K20A3 / K20A4; Acura K24A2; Honda F20C / F22C; Honda K20A2 / K20A3 / K20A4 / K20Z1 / K20Z3; Honda K24A2
| Outer Spring Od | 28.10mm |
|---|
| Kit Spring Qty | 16 |
|---|
| Kit Spring | spr-m1007d |
|---|
| Seat Locator Qty | 16 |
|---|
| Seat Locator | seat-hka3 |
|---|
| Retainer Qty | 16 |
|---|
| Retainer | ret-k20a3/t1 |
|---|
| Rate | 12.50lbs/mm |
|---|
| Coil Bind | 24.70mm |
|---|
| Max Lift | 15.10mm |
|---|
| Open Pressure | 238lbs @ 12.00mm |
|---|
| Seat Pressure | 82lbs @ 39.60mm |
|---|
| Inner Spring Id | 15.20mm |
|---|
| Inner Spring Od | 20mm |
|---|
| Outer Spring Id | 20mm |
|---|
| Safe Rpm Limit | 8000 |
|---|
- Manufacturer: Supertech Performance
- Manufacturer part number: SPRK-M1007D-K2
Please confirm the selected specification and engine application before ordering.
