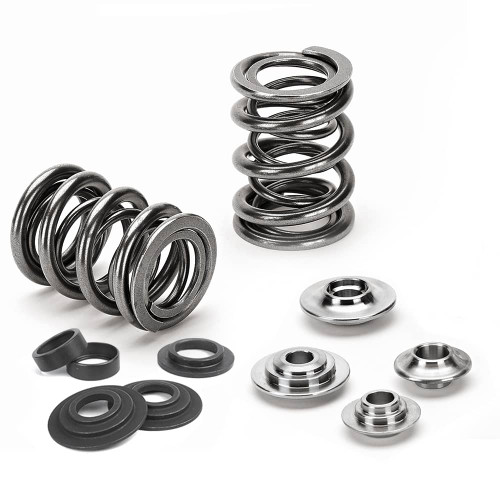

Performance Dual Valve Spring Kit with Titanium Retainers
Applications: Toyota 4AGE 16V
| Kit Spring | spr-tc25d |
|---|
| Kit Spring Qty | 16 |
|---|
| Spring Shim | ss-3012 |
|---|
| Spring Shim Qty | 16 |
|---|
| Valve Seals | vs-t6sm |
|---|
| Valve Seals Qty | 16 |
|---|
| Safe Rpm Limit | 8000 |
|---|
| Seat Locator | ss-3012 |
|---|
| Seat Locator Qty | 16 |
|---|
| Retainer Qty | 16 |
|---|
| Retainer | ret-2500/t1 |
|---|
| Outer Spring Od | 25mm |
|---|
| Outer Spring Id | 18mm |
|---|
| Inner Spring Od | 18mm |
|---|
| Inner Spring Id | 13mm |
|---|
| Seat Pressure | 73lbs @ 35.40mm |
|---|
| Open Pressure | 202lbs @ 10.50mm |
|---|
| Max Lift | 14.40mm |
|---|
| Coil Bind | 21mm ; 17mm |
|---|
| Rate | 12.60lbs/mm |
|---|
- Manufacturer: Supertech Performance
- Manufacturer part number: SPRK-TC25D
Please confirm the selected specification and engine application before ordering.
