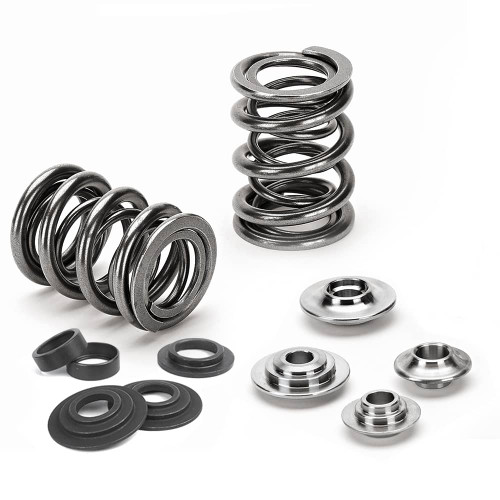

Performance Dual Valve Spring Kit with Titanium Retainers
Applications: Nissan VK56DE
| Retainer Qty | 32 |
|---|
| Seat Locator | seat-ts1015 |
|---|
| Seat Locator Qty | 32 |
|---|
| Kit Spring | spr-ts1012 |
|---|
| Kit Spring Qty | 32 |
|---|
| Safe Rpm Limit | 8000 |
|---|
| Retainer | ret-ts5.5/t8 |
|---|
| Rate | 9.60lbs/mm |
|---|
| Coil Bind | 20mm |
|---|
| Outer Spring Od | 27.50mm |
|---|
| Outer Spring Id | 20mm |
|---|
| Inner Spring Od | 20mm |
|---|
| Inner Spring Id | 15.20mm |
|---|
| Seat Pressure | 58lbs @ 36.00mm |
|---|
| Open Pressure | 153lbs @ 10.00mm |
|---|
| Max Lift | 16mm |
|---|
- Manufacturer: Supertech Performance
- Manufacturer part number: SPRK-TS1012-N35-32
Please confirm the selected specification and engine application before ordering.
