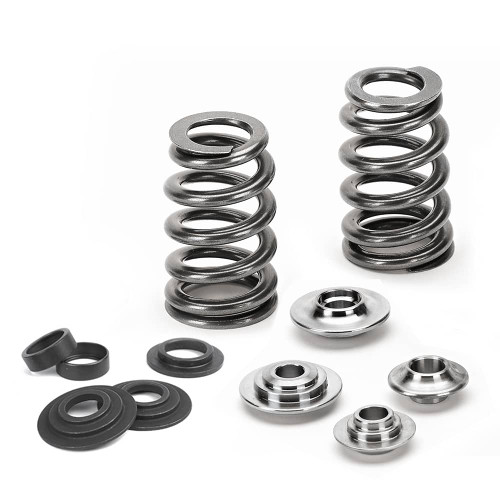

Performance Beehive Valve Spring Kit with Titanium Retainers
Applications: Subaru EJ20 Turbo DOHC; Subaru EJ25 Turbo DOHC
| Retainer Qty | 16 |
|---|
| Seat Locator | seat-ts/sub |
|---|
| Seat Locator Qty | 16 |
|---|
| Kit Spring | spr-ts1015-be |
|---|
| Kit Spring Qty | 16 |
|---|
| Safe Rpm Limit | 8000 |
|---|
| Retainer | ret-ts60/wrx-be |
|---|
| Rate | 12.70lbs/mm |
|---|
| Outer Spring Od | 27.70mm |
|---|
| Outer Spring Id | 19.70mm |
|---|
| Inner Spring Od | 23.20mm |
|---|
| Inner Spring Id | 15.20mm |
|---|
| Seat Pressure | 70lbs @ 35.00mm |
|---|
| Open Pressure | 217lbs @ 11.50mm |
|---|
| Max Lift | 12.50mm |
|---|
| Coil Bind | 21.80mm |
|---|
- Manufacturer: Supertech Performance
- Manufacturer part number: SPRK-TS1015-BE-SU1
Please confirm the selected specification and engine application before ordering.
