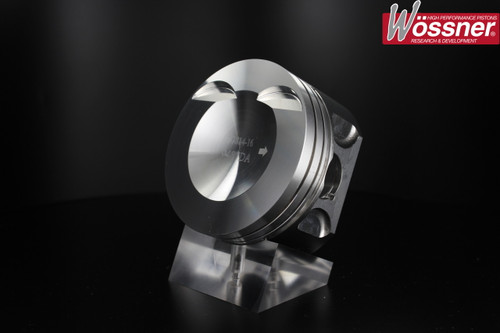

Wössner Piston Kit for A4 & A5 2.0 16V Turbo TFSI 83mm – K9487D050 - alternate view 2

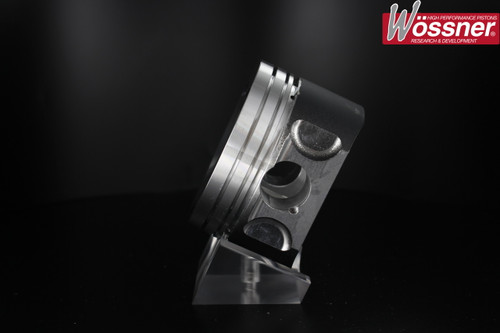

Wössner Piston Kit for A4 & A5 2.0 16V Turbo TFSI 83mm – K9487D050 - alternate view 3

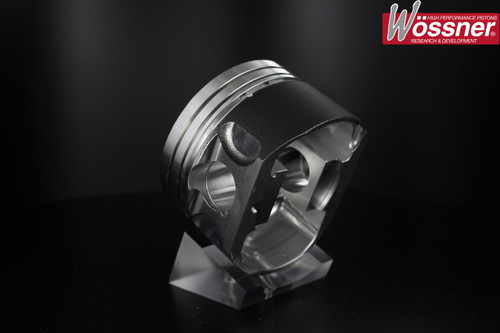

Wössner Piston Kit for A4 & A5 2.0 16V Turbo TFSI 83mm – K9487D050 - alternate view 4

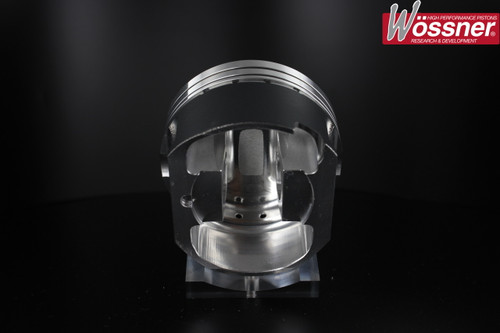

Wössner Piston Kit for A4 & A5 2.0 16V Turbo TFSI 83mm – K9487D050 - alternate view 5

Guaranteed Fitment

Always the correct part
In-House Experts

We know our products
Added Value

Mounting, Balancing
Wordwide Delivery

Free shipping on all order

Wössner Forged Piston Kit for A4 & A5 2.0 16V Turbo TFSI – 83mm – K9487D050

Name: Wössner Forged Piston Kit for A4 & A5 2.0 16V Turbo TFSI – 83mm – K9487D050
Brand: wossner
SKU: WOS-K9487D050
Price: 589.88 GBP
Availability: InStock

(No reviews) Write a Review

£589.88

SKU: WOS-K9487D050

Current Stock:

Quantity:

Adding to cart… The item has been added

Description

Description

This Wössner forged piston kit is listed for A4 & A5 2.0 16V Turbo TFSI. Catalogue reference: K9487D050. Selected bore size: 83mm.

Key specifications

Application: A4 & A5 2.0 16V Turbo TFSI
Manufacturer: Audi
Engine code: CCTA / CCZA / CCZB / CBF / CAEB >2011
Year range: 2008–2015
Catalogue reference: K9487D050
Bore Size: 83mm
Product type: Forged Piston Kits
Kit Part Number: K9487
Stroke: 92.8mm
Compression Height: 29.6mm
OEM Comp Ratio: 9.6:1
OEM Rod Length: 144mm
Suits Wossner Con Rod: G0293
Pin Size: 21mm
Pin Part Number: WP092
Clip Part Number: CW21
Number of Rings: 3
Cylinders: 4
Valves Per Cylinder: 4
Con Rod Length Centre-to-centre: 144mm
Drawing number: 37814
Piston number: K9487D050

Fitment note: Compare the application, engine code, selected option and listed dimensions with your engine before ordering. Contact TSR Performance if you need a fitment check.
