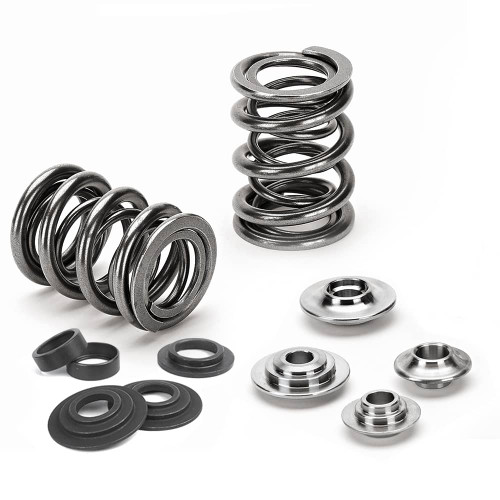

Performance Dual Valve Spring Kit with Steel Retainers
Applications: BMW S54B32
| Outer Spring Od | 26.40mm |
|---|
| Safe Rpm Limit | 8000 |
|---|
| Kit Spring Qty | 24 |
|---|
| Kit Spring | spr-2521-2 |
|---|
| Seat Locator Qty | 24 |
|---|
| Seat Locator | seat-bms54 |
|---|
| Retainer Qty | 24 |
|---|
| Retainer | ret-bm2521/t2 |
|---|
| Rate | 10lbs/mm |
|---|
| Coil Bind | 24.50mm |
|---|
| Max Lift | 14.50mm |
|---|
| Open Pressure | 186lbs @ 10.00mm |
|---|
| Seat Pressure | 82lbs @ 41.00mm |
|---|
| Inner Spring Id | 14.50mm |
|---|
| Inner Spring Od | 19.30mm |
|---|
| Outer Spring Id | 19.30mm |
|---|
- Manufacturer: Supertech Performance
- Manufacturer part number: SPRK-2521-2BM-ST
Please confirm the selected specification and engine application before ordering.
