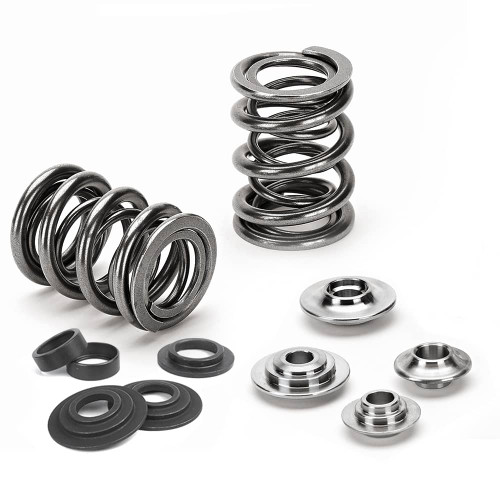

Performance Dual Valve Spring Kit with Titanium Retainers
Applications: GM Ecotec LSJ
| Retainer Qty | 16 |
|---|
| Seat Locator | seat-ec3020 |
|---|
| Seat Locator Qty | 16 |
|---|
| Kit Spring | spr-ec3027d |
|---|
| Kit Spring Qty | 16 |
|---|
| Mandatory | vs-t6sm ; gde-ec60-sm |
|---|
| Safe Rpm Limit | 8000 |
|---|
| Retainer | ret-ec3020/t1 |
|---|
| Rate | 11.70lbs/mm |
|---|
| Outer Spring Od | 26.60mm |
|---|
| Outer Spring Id | 19.60mm |
|---|
| Inner Spring Od | 19.60mm |
|---|
| Inner Spring Id | 14.20mm |
|---|
| Seat Pressure | 94lbs @ 34.60mm |
|---|
| Open Pressure | 232lbs @ 12.50mm |
|---|
| Max Lift | 13.90mm |
|---|
| Coil Bind | 20.70mm |
|---|
- Manufacturer: Supertech Performance
- Manufacturer part number: SPRK-EC3027D
Please confirm the selected specification and engine application before ordering.
