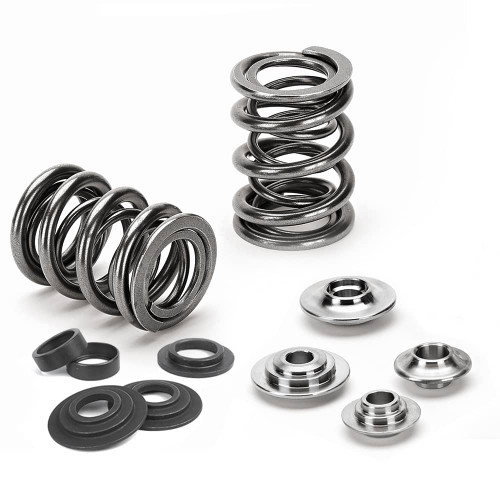

Performance Dual Valve Spring Kit with Titanium Retainers
Applications: Toyota 2JZ-GE; Toyota 2JZ-GTE DOHC
| Retainer Qty | 24 |
|---|
| Seat Locator | use oem seat |
|---|
| Seat Locator Qty | 24 |
|---|
| Kit Spring | spr-ts1009 |
|---|
| Kit Spring Qty | 24 |
|---|
| Safe Rpm Limit | 8000 |
|---|
| Retainer | ret-ts60/t1-2 |
|---|
| Rate | 14.50lbs/mm |
|---|
| Outer Spring Od | 27.50mm |
|---|
| Outer Spring Id | 20mm |
|---|
| Inner Spring Od | 20mm |
|---|
| Inner Spring Id | 14.20mm |
|---|
| Seat Pressure | 118lbs @ 33.60mm |
|---|
| Open Pressure | 277lbs @ 11.00mm |
|---|
| Max Lift | 12.10mm |
|---|
| Coil Bind | 20.70mm ; 19.50mm |
|---|
- Manufacturer: Supertech Performance
- Manufacturer part number: SPRK-TS1009
Please confirm the selected specification and engine application before ordering.
