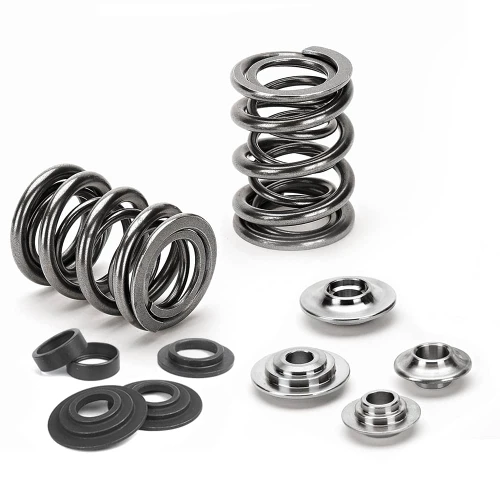

Performance Dual Valve Spring Kit with Titanium Retainers
Applications: Acura B18A / B18B; Acura B20; Honda B18A / B18B; Honda B20
| Seat Locator | seat-ts15/ls-in ; seat-ts15/ls-ex |
|---|
| Seat Locator Qty | 8 ; 8 |
|---|
| Kit Spring | spr-ts1015 |
|---|
| Kit Spring Qty | 16 |
|---|
| Safe Rpm Limit | 8000 |
|---|
| Retainer Qty | 16 |
|---|
| Retainer | ret-ts66/t1 |
|---|
| Outer Spring Od | 27.50mm |
|---|
| Outer Spring Id | 20mm |
|---|
| Inner Spring Od | 20mm |
|---|
| Inner Spring Id | 15.50mm |
|---|
| Seat Pressure | 77lbs @ 34.50mm |
|---|
| Open Pressure | 211lbs @ 11.00mm |
|---|
| Max Lift | 13.80mm |
|---|
| Coil Bind | 20.70mm |
|---|
| Rate | 12.10lbs/mm |
|---|
- Manufacturer: Supertech Performance
- Manufacturer part number: SPRK-TS1015-LS
Please confirm the selected specification and engine application before ordering.
