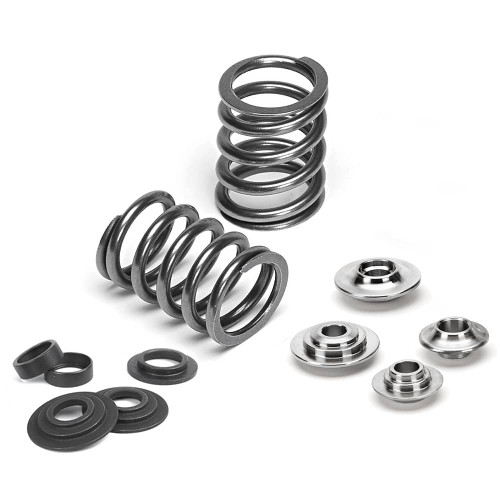

Performance Single Valve Spring Kit with Titanium Retainers
Applications: Nissan SR20DE; Nissan SR20DET
| Seat Locator Qty | 16 |
|---|
| Kit Spring | spr-h1021s |
|---|
| Kit Spring Qty | 16 |
|---|
| Safe Rpm Limit | 8000 |
|---|
| Inner Spring Od | single |
|---|
| Inner Spring Id | single |
|---|
| Seat Locator | use oem seat |
|---|
| Retainer Qty | 16 |
|---|
| Outer Spring Od | 30mm |
|---|
| Outer Spring Id | 21.80mm |
|---|
| Seat Pressure | 68lbs @ 40.50mm |
|---|
| Open Pressure | 160lbs @ 10.00mm |
|---|
| Max Lift | 15mm |
|---|
| Coil Bind | 22.70mm |
|---|
| Rate | 9.30lbs/mm |
|---|
| Retainer | ret-nsr20/t1 |
|---|
- Manufacturer: Supertech Performance
- Manufacturer part number: SPRK-H1021S-SR20
Please confirm the selected specification and engine application before ordering.
