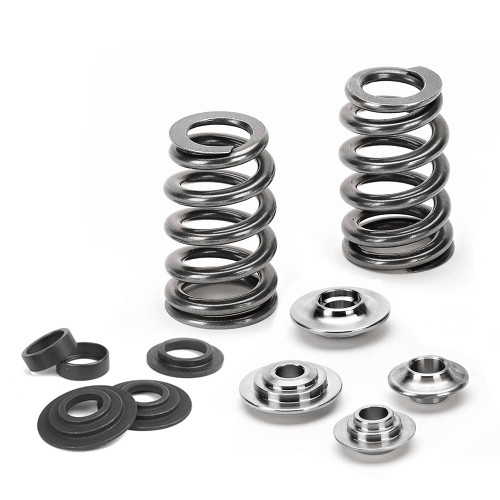

Performance Beehive Valve Spring Kit with Titanium Retainers
Applications: Mini R53
| Seat Locator | use oem seat |
|---|
| Seat Locator Qty | 16 |
|---|
| Kit Spring | spr-hm1007be |
|---|
| Kit Spring Qty | 16 |
|---|
| Spring Shim | ss-2717-2 |
|---|
| Spring Shim Qty | 16 |
|---|
| Safe Rpm Limit | 8000 |
|---|
| Retainer Qty | 16 |
|---|
| Retainer | ret-m65-tbe |
|---|
| Rate | 12.80lbs/mm |
|---|
| Outer Spring Od | 28mm |
|---|
| Outer Spring Id | 18.80mm |
|---|
| Inner Spring Od | 24.20mm |
|---|
| Inner Spring Id | 14.20mm |
|---|
| Seat Pressure | 75lbs @ 39.00mm |
|---|
| Open Pressure | 203lbs @ 10.00mm |
|---|
| Max Lift | 16.20mm |
|---|
| Coil Bind | 22.80mm |
|---|
- Manufacturer: Supertech Performance
- Manufacturer part number: SPRK-HM1007BE-MC
Please confirm the selected specification and engine application before ordering.
